Description

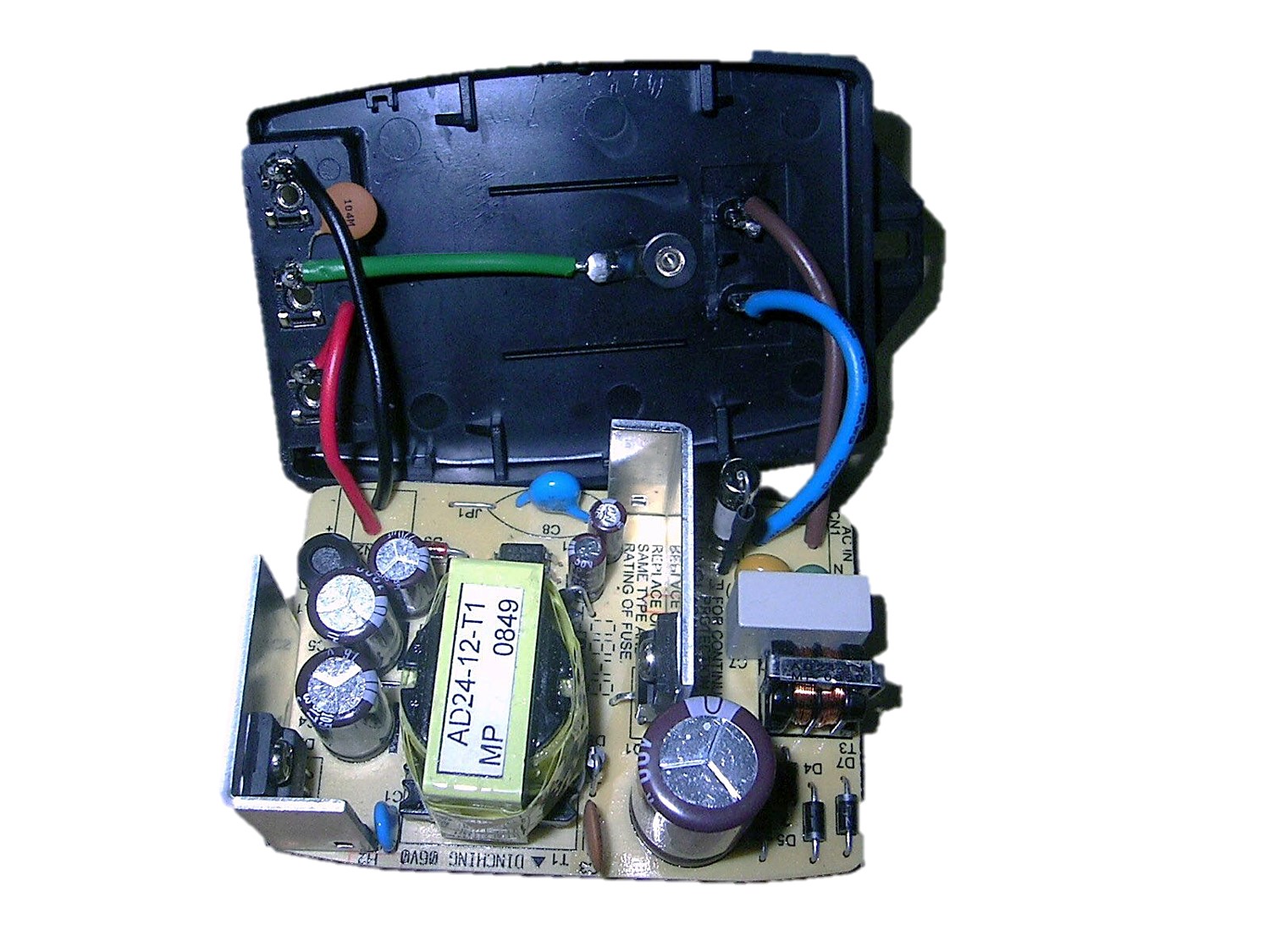

The AD24-12 and AD24-24 are isolated, flyback digital power supplies operating from an 85–265VAC (47–63Hz) input. Continuous output is 24W at either 12V or 24V, packaged in an EI-57 standard UL 94V-0 plastic enclosure with a 3-prong US plug. Minimum efficiency is 80% across 25–100% load.
Part number selection
| Output voltage | Input range | Max output current | Typical efficiency | Model |
|---|---|---|---|---|
| 12V | 85–265VAC | 2.0A | 84% | AD24-12 |
| 24V | 85–265VAC | 1.0A | 84% | AD24-24 |
Electronics ODM / OEM / AD24
AD24 Plug-in Power Supply
Isolated flyback plug-in power supply, universal 85-265VAC input, 12V or 24V output up to 24W, in an EI-57 UL 94V-0 enclosure.
| Input voltage | 85–265 VAC |
|---|---|
| Frequency | 47–63 Hz |
| Output voltage | 12 or 24 Vdc |
| Output current (12V model AD24-12) | 2.0 A |
| Output current (24V model AD24-24) | 1.0 A |
| Output power | 24 W |
| Efficiency | 84% typical, 80% min 25–100% load |
| Package | EI-57, UL 94V-0 plastic enclosure |
| Plug | 3-prong US type |
| Protection | Over current, short circuit, over voltage |
| Operating temperature | -20 to 50 °C |
| MTBF | 50,000 hrs |
| Weight | 180 g |
